Single Bar Column Forming Clamps
The Ellis Column Form Clamp is a simple way to clamp column forms. There are no moving parts and every bar is interchangeable.Ā Price is per single bar and wedge, 4 needed to complete full clamp.
Specifications
Demonstration Video

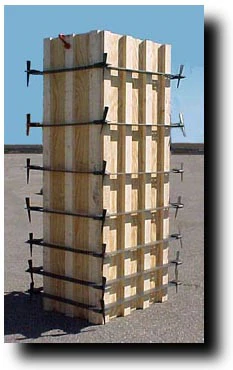

Only a hammer is needed to assemble the Column Form Clamps. They can be used for square or rectangular columns. Hook the bars together and drive the wedge down to tighten each corner. Quickly dismantle by tapping the wedges from the holes in the Column Clamps.Ā Each bar can be nested together for storage.
The bars have been designed to fit columns at 1" increments using 5/8" or 3/4" plywood and 2x4" or 2x6" studs.Ā
EachĀ bar sizeĀ has a 15" range of adjustment.Ā For example - the SB-48 can be used on net concrete column sizes ranging from 33" to 48".
Need help deciding how many clamps you need? Ā The Ellis MFG Column Form Designer can help. Ā Try it!
