Base Plate Extension

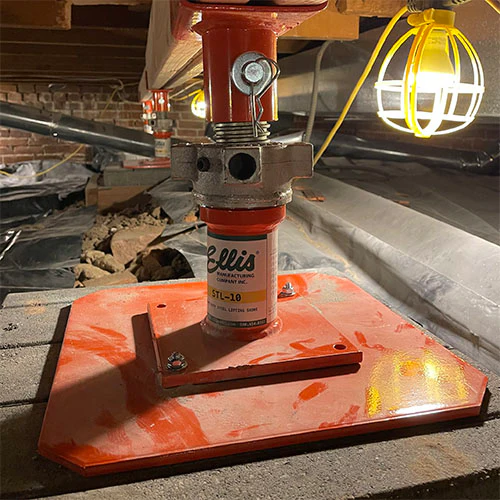

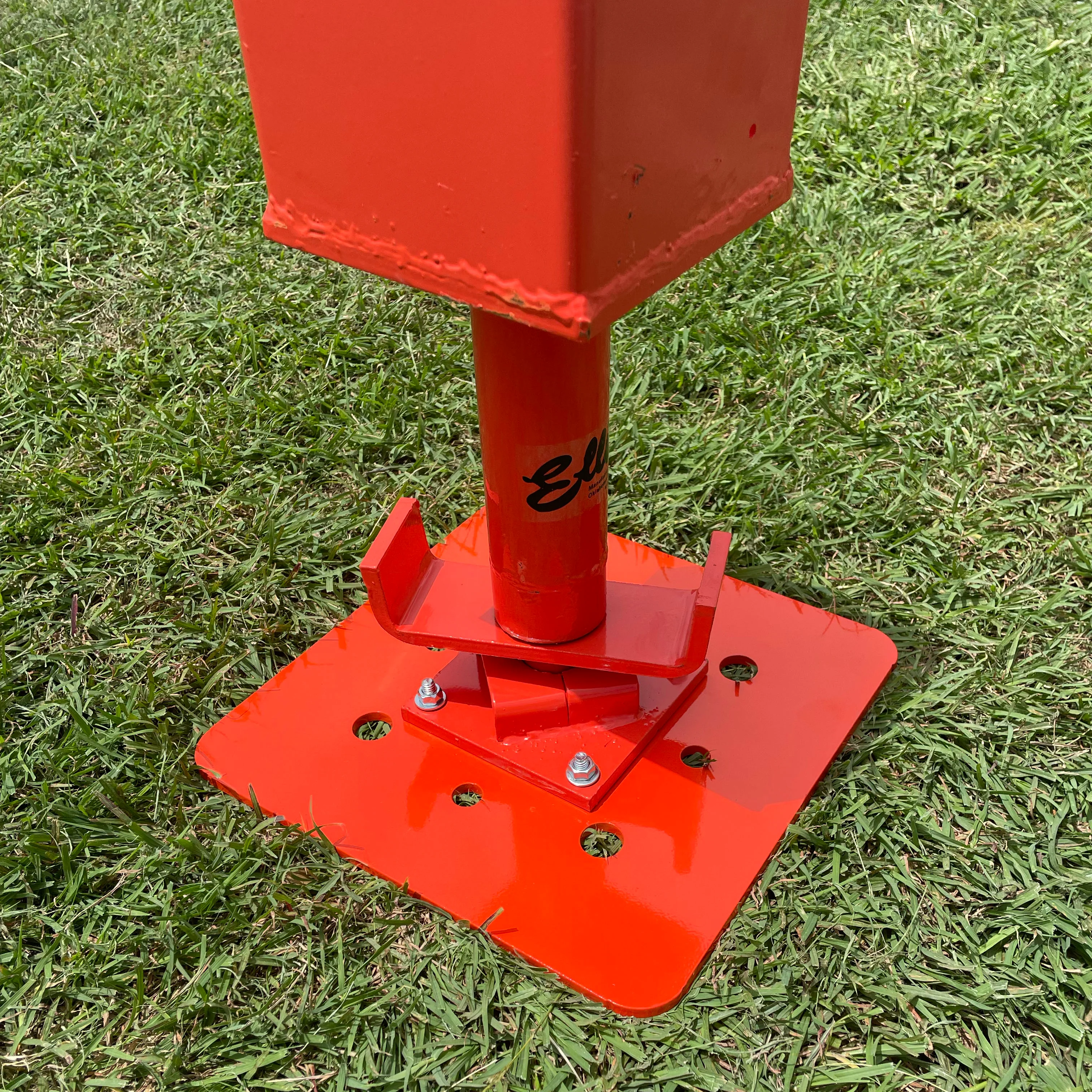

Extend the standard base or top plate of any Light Duty Steel Shore, Heavy Duty Steel Shore, Mini Jack, or 4x4/6x6 Screw Jack with the Base Plate Extension.Ā Hot rolled steel plate with matching mounting holes, relieved corners and baked on powder coat finish.Ā Includes 4 ea. 5/16" diameter x 1" long bolts and matching nuts to bolt plate to top or bottom of steel shores.
Specifications
Extend the standard base or top plate of any Light Duty or Heavy Duty Steel Shore, Mini Jack, Screw Jack or Timber Jacks with the Base Plate Extension.Ā Hot rolled steel plate with matching mounting holes, relieved corners and baked on powder coat finish.Ā Includes 4 ea. 5/16" diameter x 1" long bolts and matching nuts to bolt plate to top or bottom of steel shores.Ā Ā Base plates are designed to spread load over soil surface.
Available Sizes :
- 12" x 12" x .25"
- 18" x 18" x .25"
- Custom Sizes Available

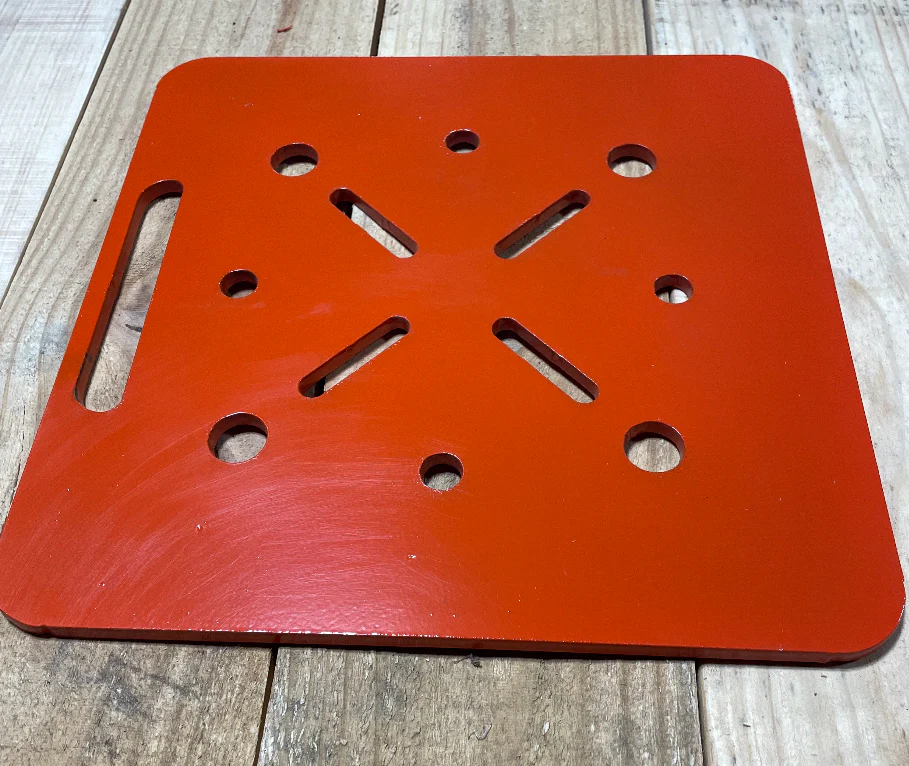

*Mounting holes match Light Duty Shores or Heavy Duty Shores. Slots match Mini Jacks, 4x4/6x6 Screw Jacks and Timber Jacks.
*BoltsĀ protrude below base plate if used.
Shop Drawings and CAD Blocks:
| Item Number | Shop Drawing (.PDF) |
| BASE-12 | BASE-12 Shop Drawing |
| BASE-18 | BASE-18 Shop Drawing |
